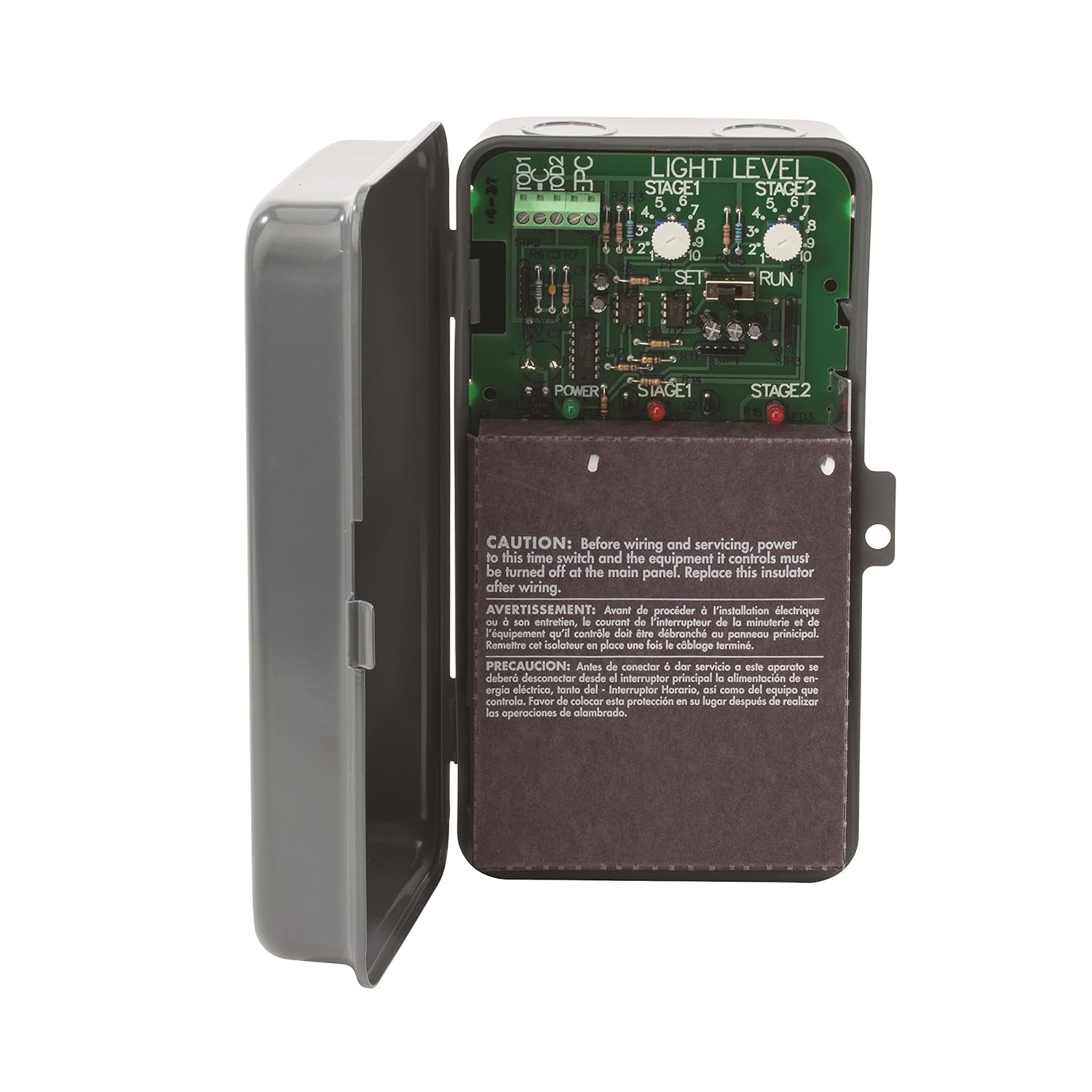

NSI LC200 Series Light Level/Time of Day Option 2 Zones Lighting Control Time Switch, 120/240/277 VAC 50/60 Hz Input Supply, SPDT Output Contact

This NSi Industries LC200 lighting control accepts 120-277 VAC input and its SPDT output contacts can activate a 20 amp load in each of its two zones (illuminated areas). The remote photocell (included) turns on lighting when the ambient light level drops below a user-selectable level (between 2 and 100 foot candles) and turns lighting off when the light exceeds that level. An optional time switch (not included) can also control on/off settings. The single-pole double-throw (SPDT) contacts are housed within a metal enclosure that meets NEMA-1 standards for dust resistance and has a lockable hasp. The enclosure is suitable for indoor use and mounts to an external surface. This digital timer is Underwriter Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance and is suitable for controlling lighting.SpecificationsSwitch typeLight-activated control. Two zone operation.Input power supply120-277 VAC, 50/60 Hz, 5 W power consumptionOutput contactsSPDT contacts, 20 amp load ratingOn/off control2 to 100 foot candles (fc) activation, 30 second Off delay. Optional time switch (not included)EnclosureNEMA-1 metal enclosure, indoor use, external surface mountTerminal wire size range#12 to #22 AWG (American wire gauge)Operating temperature range-40 to +140 degrees F (-40 to +60 degrees C)Standards metUL Listed, CSA certifiedAutomatic switches are used to turn on or off electrical devices and are activated by time, light, and motion. Time activated switches (also known as timers) operate at preset time intervals during a daily or weekly period and can be either mechanical or electronic. Mechanical timers feature a dial with multiple pins to set the on/off time intervals. Electronic timers feature an LCD display and pushbuttons to set the time intervals. Light activated switches (also known as optical or photo) operate when ambient light levels reach preset values, generally measured in foot candles. Motion-activated switches (also known as motion sensors) operate when an electronic field of a preset range is interrupted. These switches can include energy saving logic that uses combinations of time, light, and motion to operate and can include one or more device outlets or circuit contacts. Automatic switches are used to control indoor lights, outdoor lights, appliances, and small equipment motors.NSi Industries manufactures electrical components and sensors, lighting products, and energy management products. The company, founded in 1975, is headquartered in Huntersville, NC.What's in the Box?LC200 Lighting controlEPC1 Photocell

• Outdoor Lighting Controller, 20 Amp, Volt, SPDT, EPC1 Photosensor Included Tork 2 Zone SPDT Lighting Control Use to control two different outdoor lighting circuits utilizing one photocell
• Sign lighting can turn ON at one ambient light level while parking lot lighting turns ON at a different light level
• APPLICATIONS: 24 Hour Convenience Stores Open Wall Parking Structures Large Canopies Building Perimeters Atriums FEATURES: INPUT VOLTAGE: 120/240/277VAC, 50/60Hz OUTPUT CONTACTS: SPDT NO
• OF ZONES: 2 Zones TERMINAL RANGE: Relay #12AWG- input power terminals #14-#22AWG- TOD/sensor terminals accept #18-#22AWG
• POWER CONSUMPTION: 5VA Maximum OPERATING TEMPERATURE: - 40 degrees to +140 degrees F (-40 degrees C to +60 degrees C) PHOTOSENSOR INPUT: EPC1 Included
